GEFFS SIDE DELIVERY SYSTEMS

GEFFS SIDE DELIVERY LEFT HAND DISCHARGE 12-14 FOOT CONVEYOR

SOLD

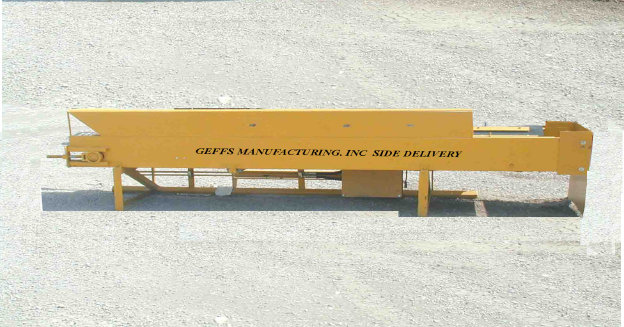

Image of GEFFS Chip Spreader Side Delivery System

The Side Delivery System is designed for easy installation and removal allowing versatility to your existing self-propelled chip spreader.
This easily installed attachment allows you to widen roadways, place bedding materials, spread free flowing materials in shoulder rehabilitation programs with little or no waste. All parts necessary to provide a complete side delivery system are included and shall conform in strength, quality of materials and workmanship.

FUNCTION:

The Side Delivery System is attached to the GEFFS Manufacturing, Inc., W.H. & Sons, or other manufacture self propelled chip spreader for the use of shoulder rehabilitation and/or for filling shoulder in after over lay programs.

It can also be used to fill trenches with appropriate materials for back fill. The material is elevated from the rear hopper to the front cross conveyor. The material is then transported to the shoulder or trench for filling.

image of GEFFS side delivery strike off blade
Fixed 12 foot Side Delivery Assy with strike off blade P/N 70009

One (1) each 24 inch wide conveyor and 12 foot long fully enclosed conveyor with dual side seals and chute. The conveyor is a 220# belting with variable speed control with self cleaning and adjustable tail pulley. Adjustable front idler is provided to assure proper tracking on head pulley. On integrated self-supporting frame is provided for storage when not in use.

STRIKE-OFF BLADE:
A strike-off or finish blade is available to allow leveling of materials applied to road surface. This blade is 18” X 60” with an adjustable end wing. Mounting kit is welded to the main frame of the chip spreader. Blade is hydraulically adjustable in height from 2” below grade level to 6” above grade level. The blade tilt is hydraulically adjustable. The blade back angle is adjustable manually prior to use. The height and tilt are control from the operator’s station.

Conveyor
Length 12 feet
Shipping Height 3 feet 10 inches
Shipping Width 3 feet 9 inches
Weight 1700 pounds
Belt Width 24 inchesStrike-off Blade
Length 8 feet 2 inches
Shipping Height 3 feet 1 inch
Shipping Width 5 feet 4 inches
Weight 600 Pounds
image of left hand aggregate side delivery system
Left Hand Discharge Variable Width Side Delivery Assy with strike off blade P/N 70057BML
This left hand discharge side delivery is equipped with one (1) each 24 inch wide conveyor serpentine belt that is in a fully enclosed conveyor with dual side seals and chute. The conveyor is a 220# belting with variable speed control with self cleaning and adjustable tail pulley.
Adjustable front idler is provided to assure proper tracking on head pulley. This unit can be hydraulically extend from 12 ft to 14 ft in the direction of discharge. A integrated self-supporting frame is provided for storage when not in use.
A strike-off or finish blade is attached to allow leveling of materials applied to road surface. This blade is 18” X 60” with an adjustable end wing. Blade is hydraulically adjustable in height from 2” below grade level to 6” above grade level. The blade tilt is hydraulically adjustable. The blade back angle is adjustable manually prior to use. The height and tilt are control from the operator’s station.
Adjustable front idler is provided to assure proper tracking on head pulley. This unit can be hydraulically extend from 12 ft to 14 ft in the direction of discharge. A integrated self-supporting frame is provided for storage when not in use.
A strike-off or finish blade is attached to allow leveling of materials applied to road surface. This blade is 18” X 60” with an adjustable end wing. Blade is hydraulically adjustable in height from 2” below grade level to 6” above grade level.
The blade tilt is hydraulically adjustable. The blade back angle is adjustable manually prior to use. The height and tilt are control from the operator’s station.
image of Geffs chip spreader side delivery system
Right Hand Discharge Variable Width Side Delivery Assy with strike off blade P/N 70057BMR
This right hand discharge side delivery is equipped with one (1) each 24 inch wide conveyor serpentine belt in a fully enclosed conveyor with dual side seals and chute. The conveyor is a 220# belting with variable speed control with self cleaning and adjustable tail pulley.
Adjustable front idler is provided to assure proper tracking on head pulley. This unit can be hydraulically extend from 12 ft to 14 ft in the direction of discharge. A integrated self-supporting frame is provided for storage when not in use.
A strike-off or finish blade is attached to allow leveling of materials applied to road surface. This blade is 18” X 60” with an adjustable end wing. Blade is hydraulically adjustable in height from 2” below grade level to 6” above grade level.
The blade tilt is hydraulically adjustable. The blade back angle is adjustable manually prior to use. The height and tilt are control from the operator’s station.
GEFFS SIDE DELIVERY SYSTEMS make shouldering a cleaner, easier, and safer task. Truck never leave the roadway.
Call GEFFS Manufacturing, Inc for current price and availability 888-447-2882
GEFFS Side Delivery Systems are quickly installed. Simple to operate.
